Reliability

• Cat® C7.1 ACERT™ engine and automatic Cat Regeneration System offers increased power density with a combination of proven electronic, fuel and air systems.
• Utilizing rigorous component design and machine validation processes results in unmatched reliability, durability and high uptime.

Durability

• Tough countershaft powershift transmission and axles handle extreme applications.
• Full flow hydraulic filtration system with additional loop filtration improves hydraulic system robustness and component life.

Productivity

• Engine power increased by approximately 16% improves machine performance and response (compared to H Series).
• Lock-up clutch torque converter, combined with lock-to-lock shifting, delivers smooth shifts, fast acceleration and speed on grade.
• Optimized Z-bar linkage provides high breakout force at ground level along with excellent –0°/+5° parallelism for precise work tool control.
• Easy-to-load Performance Series Buckets feature a wider mouth and curved side plates that improve material retention (fill factor) and decrease cycle times.
• On-the-go disc-type front manual differential locks (front and rear fully automatic option).
• Optional auxiliary counterweight option offers slightly higher payload capability for loose aggregate rehandling.*

*Optional configurations and equipment may vary from region to region and requires conformance to Caterpillar payload policy. Consult your dealer or Caterpillar representative for details.

Fuel Efficiency

• Up to 10% more fuel efficient than K Series and up to 25% more fuel efficient than H Series loaders.**
• Power dense ACERT engine burns less fuel by providing power and torque when needed.
• Standard productive Economy Mode provides maximum fuel savings with minimal productivity impact.

**Actual results may vary based on factors such as, but not limited to, machine configuration, operator technique, machine application, climate, etc.

Ease of Operation

• Best-in-class operator environment provides unmatched comfort, visibility, and efficiency.
• Steering wheel (E-H joystick steering option).
• Intuitive, ergonomic controls and touch screen multifunction display keep operators focused on their work.
• Ride control system with dual accumulators provides excellent ride quality and lowers cab vibrations.

Safety

• Excellent cab access with wide door, remote door opening option and stair-like steps.
• Floor to ceiling windshield, large mirrors with integrated spot mirrors and rear vision camera provide industry leading all-around visibility.

Serviceability

• One-piece tilting hood with side and rear doors; hydraulic and electrical service centers make access fast and easy.
• Safe, ground level access to fuel fill and daily maintenance points means less servicing time is required.
• Optional, fully integrated Cat Autolube system provides full lube system monitoring and diagnostic test visibility.

Cat Connect Technology

• Monitor, manage and enhance job site operations.
• Cat LINK Technologies: VisionLink® enables owners to access data wirelessly to monitor machine health, utilization and location.
• Cat DETECT Technologies: Integrated rear vision camera enhances visibility behind machine to help operators work safely. Optional Cat Rear Object Detection increases operator awareness of the working environment which enhances site safety.
• Cat PAYLOAD Technologies: Optional Cat Production Measurement 2.0 brings simple and accurate on-the-go payload scale allowing operators to deliver exact loads and work more efficiently. Advanced Productivity subscription provides comprehensive actionable information to help you manage and improve the productivity and profitability of your operations.

Overview

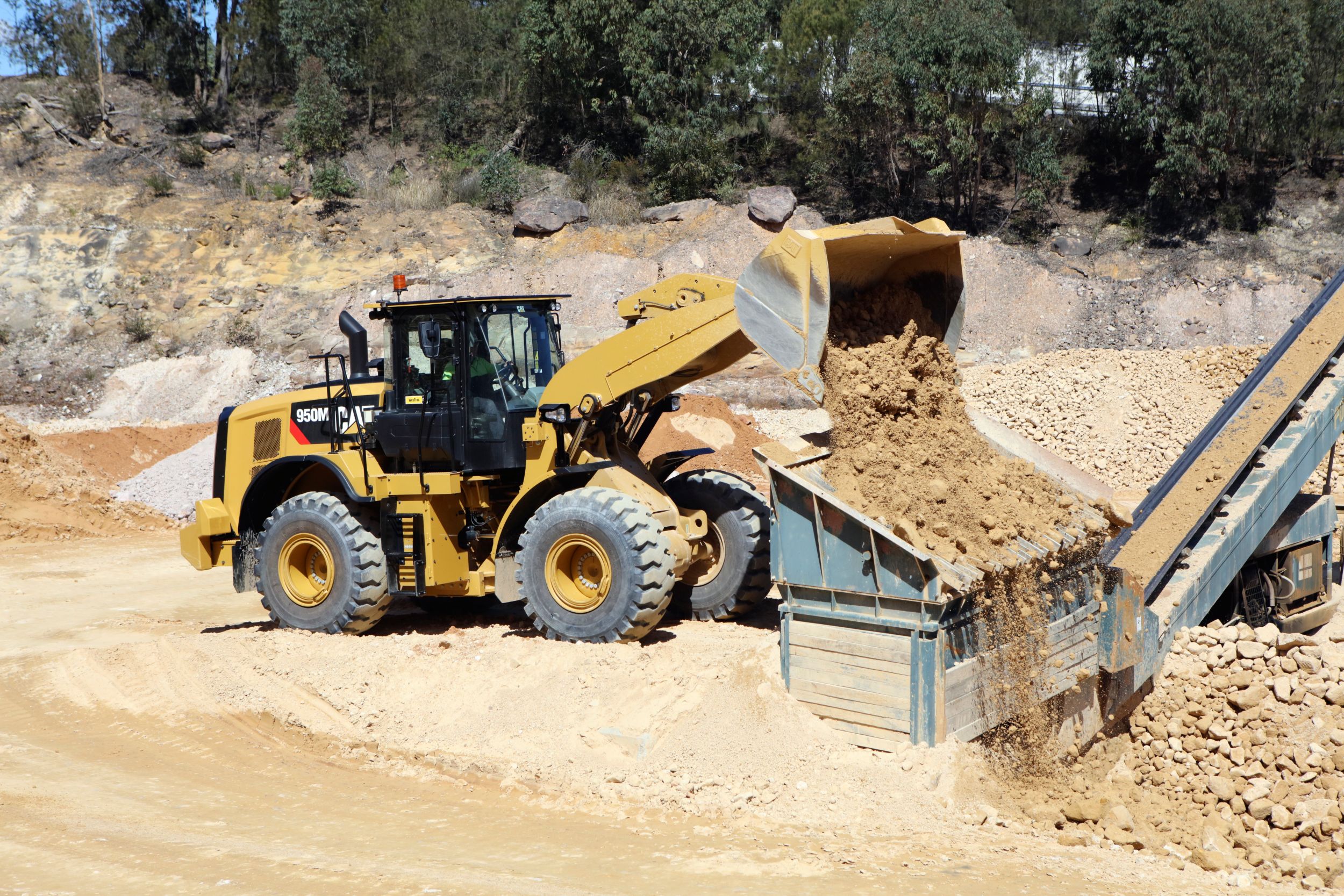

The new 950M Wheel Loader, with the 2017 product update, applies proven technologies systematically and strategically to meet your high expectations for reliability, productivity, fuel efficiency, and long service life. Meets U.S. EPA Tier 4 Final and EU Stage IV emission standards.

Net Power - ISO 9249	230.0 HP 171.0 kW	More Less
Engine Model	Cat C7.1 ACERT Cat C7.1 ACERT	More Less
Displacement	428.0 in³ 7.01 l	More Less
Maximum Net Power - 2,100 rpm - ISO 9249	230.0 HP 171.0 kW	More Less
Maximum Net Power - 2,100 rpm - ISO 9249 - Metric	232.0 HP 171.0 kW	More Less
Maximum Net Power - 2,100 rpm - SAE J1349	230.0 HP 171.0 kW	More Less
Maximum Power - 2,100 rpm - ISO 14396	249.0 HP 186.0 kW	More Less
Maximum Power - 2,100 rpm - ISO 14396 - Metric	253.0 HP 186.0 kW	More Less
Maximum Power - 2,100 rpm - SAE J1995	250.0 HP 187.0 kW	More Less
Peak Gross Torque - 1,300 rpm - ISO 14396	908.0 ft·lbf 1231.0 N·m	More Less
Peak Gross Torque - 1,300 rpm - SAE J1995	911.0 ft·lbf 1235.0 N·m	More Less
Maximum Net Torque - 1,300 rpm	858.0 ft·lbf 1163.0 N·m	More Less
Note	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.	More Less

Operating Weight	42357.0 lb 19213.0 kg	More Less
Note	Weight based on a machine configuration with Michelin 23.5R25 XHA2 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link?, manual diff lock/open axles (front/rear), power train guard, secondary steering, Weight based on a machine configuration with Michelin 23.5R25 XHA2 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link?, manual diff lock/open axles (front/rear), power train guard, secondary steering,	More Less

Bucket Capacities

2.5-9.2 m? (3.3-12.0 yd?) 2.5-9.2 m? (3.3-12.0 yd?)

More Less

Breakout Force	40690.0 lbf 181.0 kN	More Less
Static Tipping Load - Full 40° Turn - No Tire Deflection	25926.0 lb 11760.0 kg	More Less
Static Tipping Load - Full 40° Turn - With Tire Deflection	24262.0 lb 11005.0 kg	More Less
Note (1)	For a machine configuration as defined under ?Weight.? For a machine configuration as defined under ?Weight.?	More Less
Note (2)	Full compliance to ISO 143971:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. Full compliance to ISO 143971:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.	More Less

Forward - 1	4.3 mile/h 6.9 km/h	More Less
Forward - 2	7.5 mile/h 12.0 km/h	More Less
Forward - 3	12.0 mile/h 19.3 km/h	More Less
Forward - 4	16.0 mile/h 25.7 km/h	More Less
Reverse - 1	4.3 mile/h 6.9 km/h	More Less
Reverse - 2	7.5 mile/h 12.0 km/h	More Less
Reverse - 3	16.0 mile/h 25.7 km/h	More Less
Forward - 5	24.5 mile/h 39.5 km/h	More Less
Note	Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 787 mm (31 in) roll radius. Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 787 mm (31 in) roll radius.	More Less

Hydraulic Cycle Time - Total	8.9 s 8.9 s	More Less
Implement Pump Type	Variable Axial Piston Variable Axial Piston	More Less
Implement System - Maximum Operating Pressure	4250.0 psi 29300.0 kPa	More Less
Implement System - Maximum Pump Output at 2,150 rpm	76.0 gal/min 286.0 l/min	More Less

Cooling System	15.6 gal (US) 59.0 l	More Less
Crankcase	5.8 gal (US) 22.0 l	More Less
DEF Tank	4.2 gal (US) 16.0 l	More Less
Differential - Final Drives - Front	11.4 gal (US) 43.0 l	More Less
Differential - Final Drives - Rear	11.4 gal (US) 43.0 l	More Less
Fuel Tank	72.6 gal (US) 275.0 l	More Less
Hydraulic Tank	33.0 gal (US) 125.0 l	More Less
Transmission	11.4 gal (US) 43.0 l	More Less

With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008)	107.0 dB(A) 107.0 dB(A)	More Less
With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013)	75 dB(A)* 75 dB(A)*	More Less
With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)	70.0 dB(A) 70.0 dB(A)	More Less
Note (1)	*Distance of 15 m (49.2 ft), moving forward in second gear ratio. *Distance of 15 m (49.2 ft), moving forward in second gear ratio.	More Less
Note (2)	**For machines in European Union countries and in countries that adopt the ?EU Directives.? **For machines in European Union countries and in countries that adopt the ?EU Directives.?	More Less
Note (3)	***European Union Directive ?2000/14/EC? as amended by ?2005/88/EC.? ***European Union Directive ?2000/14/EC? as amended by ?2005/88/EC.?	More Less
With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)**	104 LWA*** 104 LWA***	More Less
With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)**	69.0 dB(A) 69.0 dB(A)	More Less

Bucket Range

2.5-9.2 m? (3.3-12.0 yd?) 2.5-9.2 m? (3.3-12.0 yd?)

More Less

Centerline of Rear Axle to Edge of Counterweight	6.33 ft 1942.0 mm	More Less
Centerline of Rear Axle to Hitch	5.5 ft 1675.0 mm	More Less
Ground Clearance	1.17 ft 367.0 mm	More Less
Height - Top of Exhaust Pipe	11.17 ft 3413.0 mm	More Less
Height - Top of Hood	8.83 ft 2697.0 mm	More Less
Height - Top of ROPS	11.33 ft 3451.0 mm	More Less
Hinge Pin Height at Carry Height	2.58 ft 782.0 mm	More Less
Hinge Pin Height at Maximum Lift	14.83 ft 4527.0 mm	More Less
Lift Arm Clearance at Maximum Lift	11.92 ft 3634.0 mm	More Less
Maximum Width - Over Tires - Loaded	9.25 ft 2822.0 mm	More Less
Note	All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires. All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.	More Less
Overall Length - Without Bucket	24.58 ft 7488.0 mm	More Less
Rack Back - Carry Height	49 degrees 49 degrees	More Less
Rack Back - Maximum Lift	59 degrees 59 degrees	More Less
Rack Back at Ground	40 degrees 40 degrees	More Less
Tread Width	7.0 ft 2140.0 mm	More Less
Wheel Base	11.0 ft 3350.0 mm	More Less

Centerline of Rear Axle to Edge of Counterweight	6.33 ft 1942.0 mm	More Less
Centerline of Rear Axle to Hitch	5.5 ft 1675.0 mm	More Less
Ground Clearance	1.17 ft 367.0 mm	More Less
Height - Top of Exhaust Pipe	11.17 ft 3413.0 mm	More Less
Height - Top of Hood	8.83 ft 2697.0 mm	More Less
Height - Top of ROPS	11.33 ft 3451.0 mm	More Less
Hinge Pin Height at Carry Height	2.08 ft 647.0 mm	More Less
Hinge Pin Height at Maximum Lift	13.25 ft 4027.0 mm	More Less
Lift Arm Clearance at Maximum Lift	10.75 ft 3280.0 mm	More Less
Maximum Width - Over Tires - Loaded	9.25 ft 2822.0 mm	More Less
Note	All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires. All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.	More Less
Overall Length - Without Bucket	22.67 ft 6906.0 mm	More Less
Rack Back - Carry Height	49 degrees 49 degrees	More Less
Rack Back - Maximum Lift	59 degrees 59 degrees	More Less
Rack Back at Ground	36 degrees 36 degrees	More Less
Tread Width	7.0 ft 2140.0 mm	More Less
Wheel Base	11.0 ft 3350.0 mm	More Less
